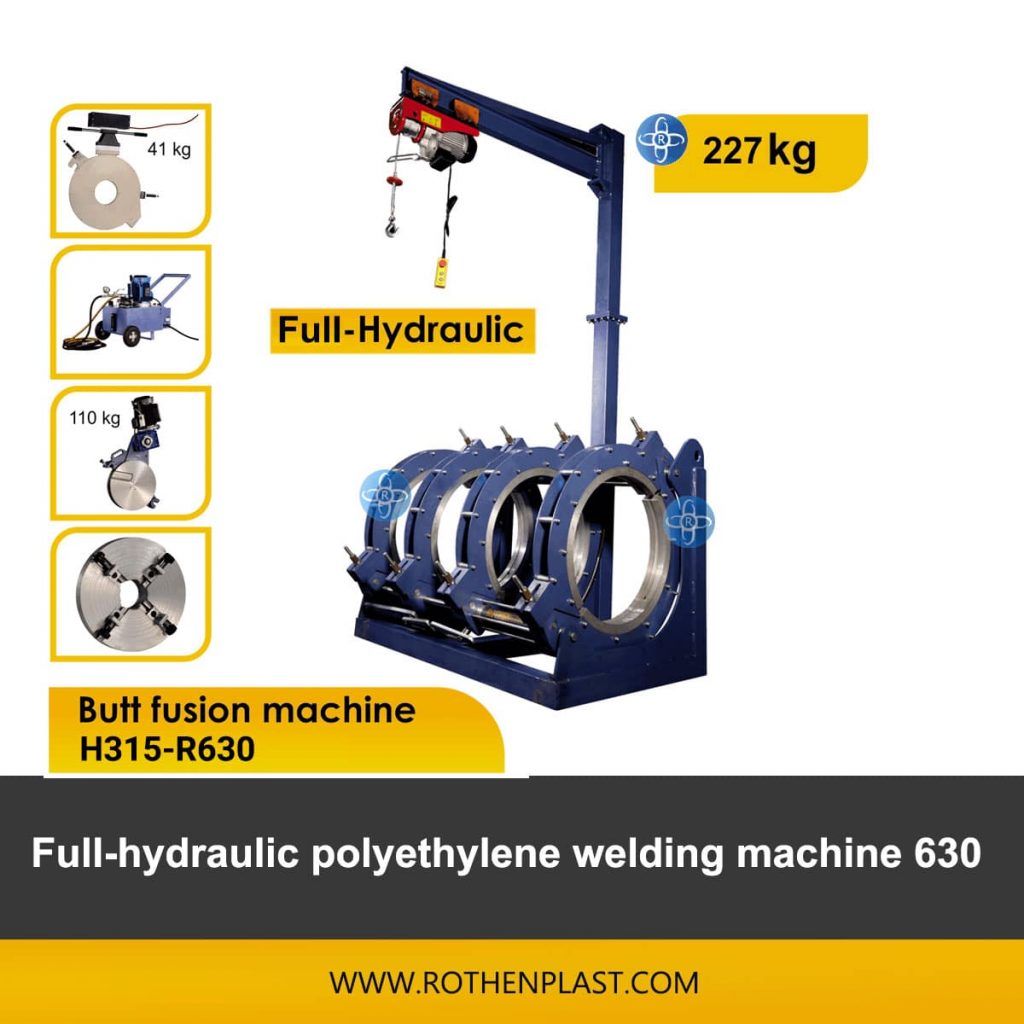

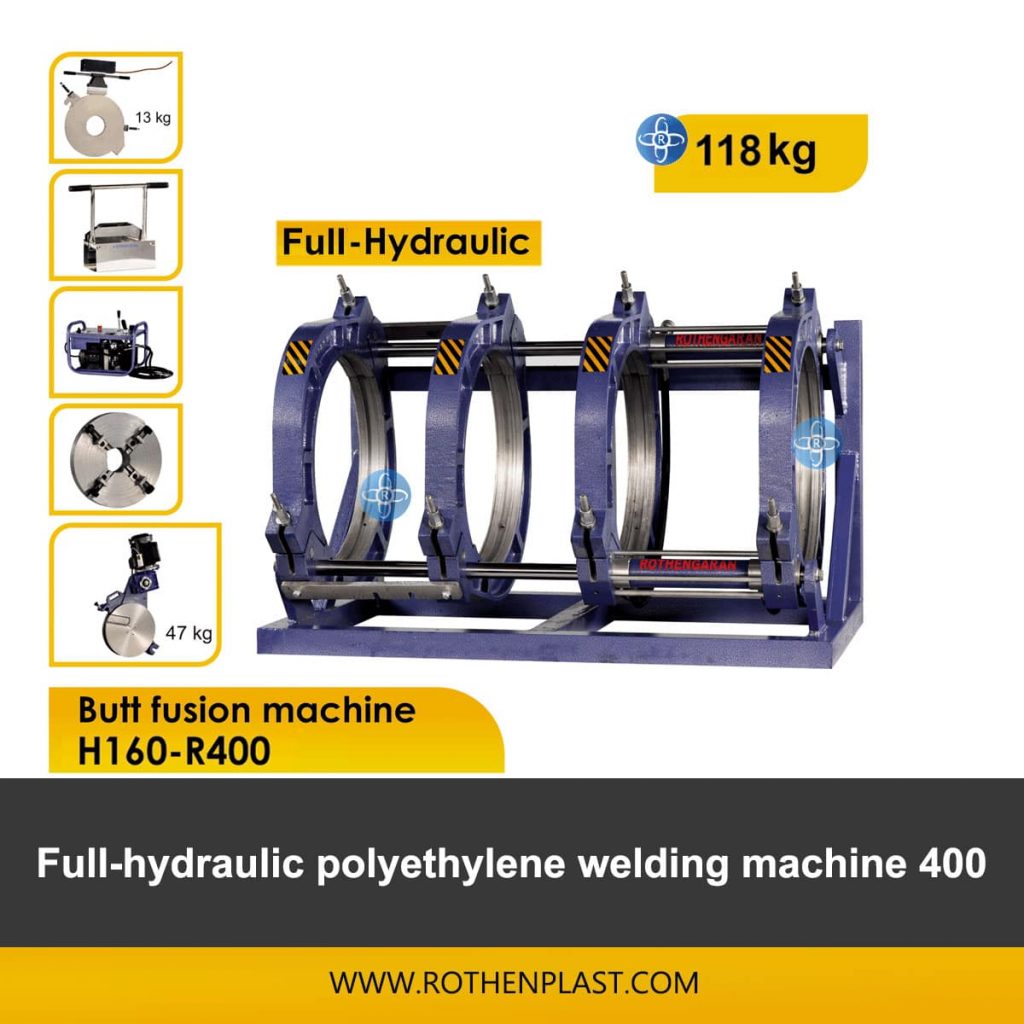

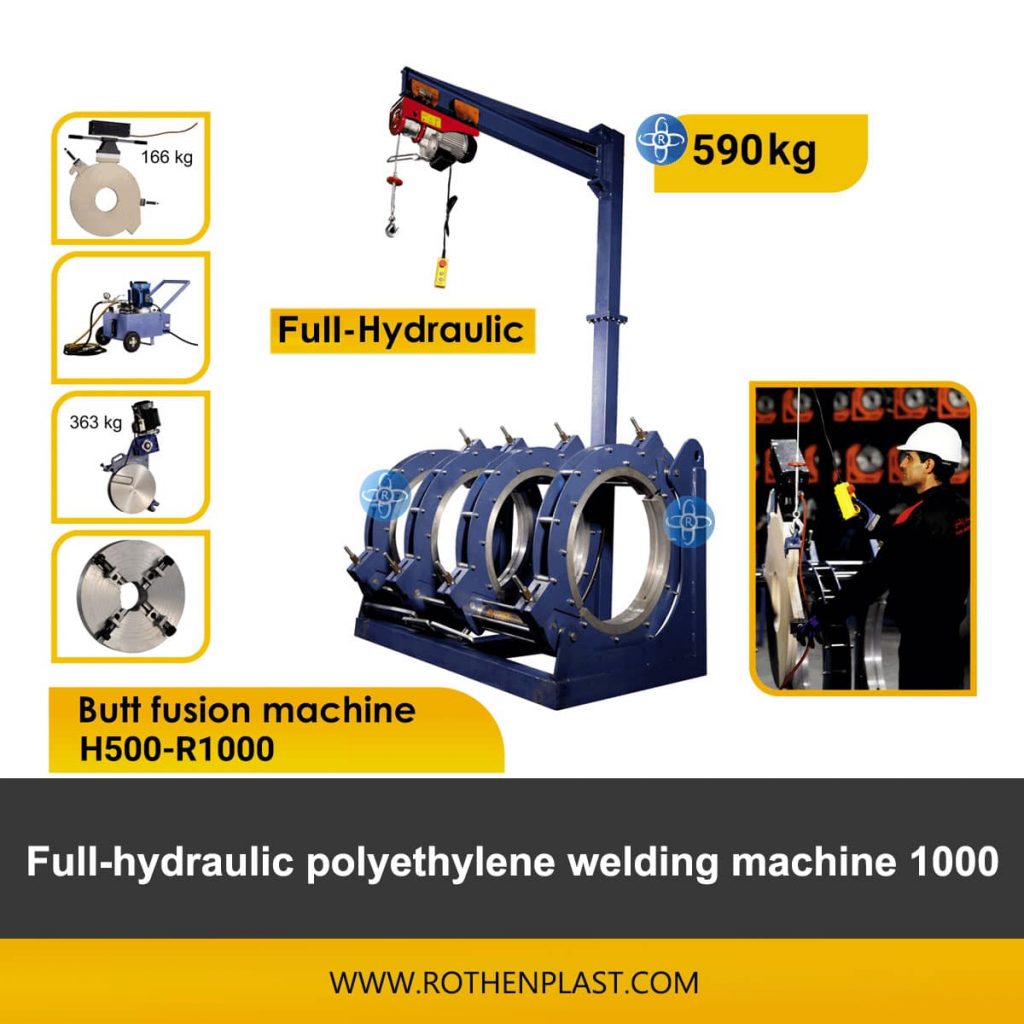

Polyethylene welding machines

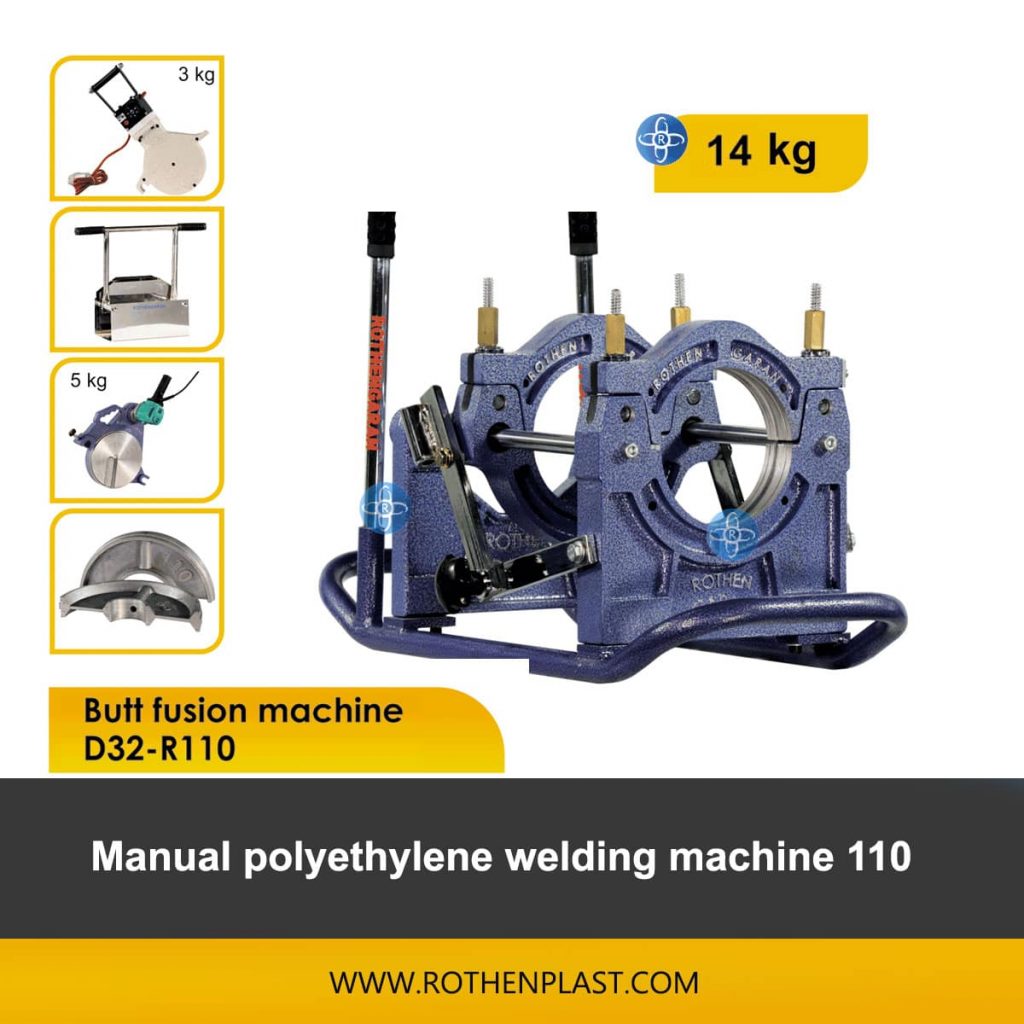

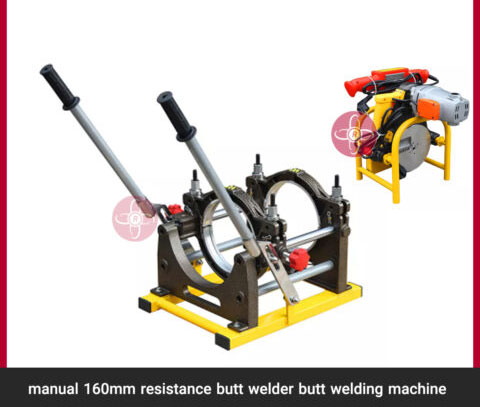

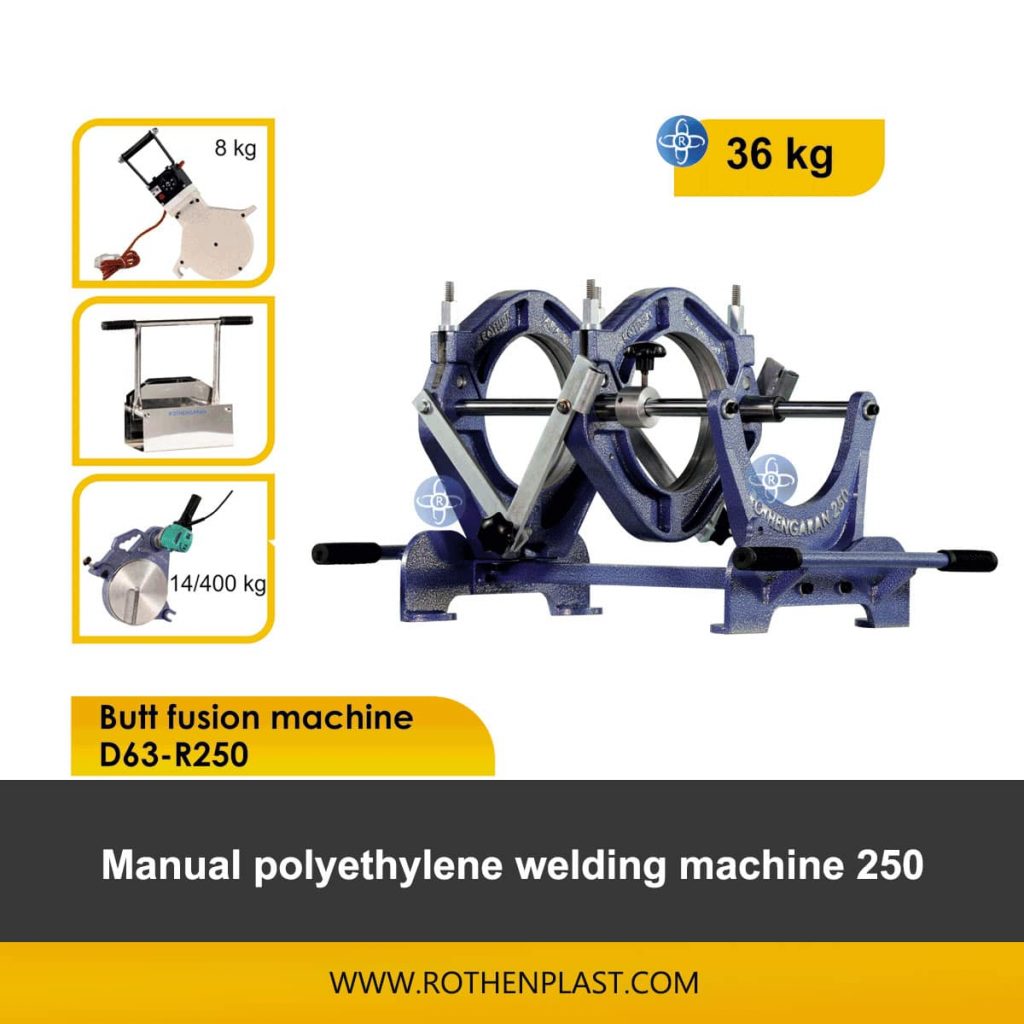

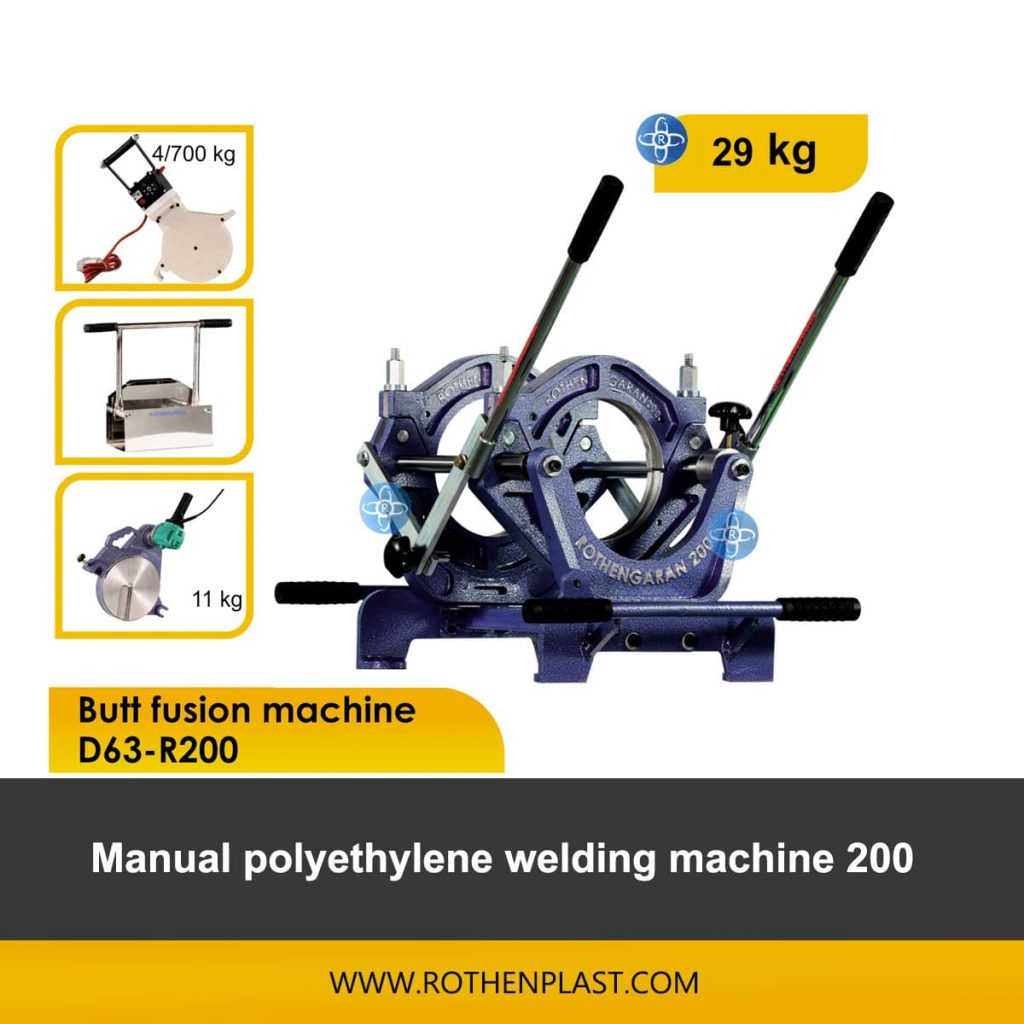

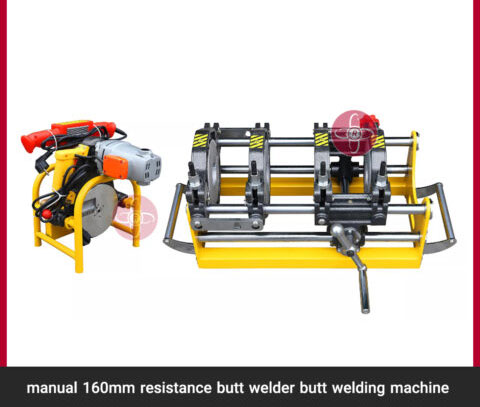

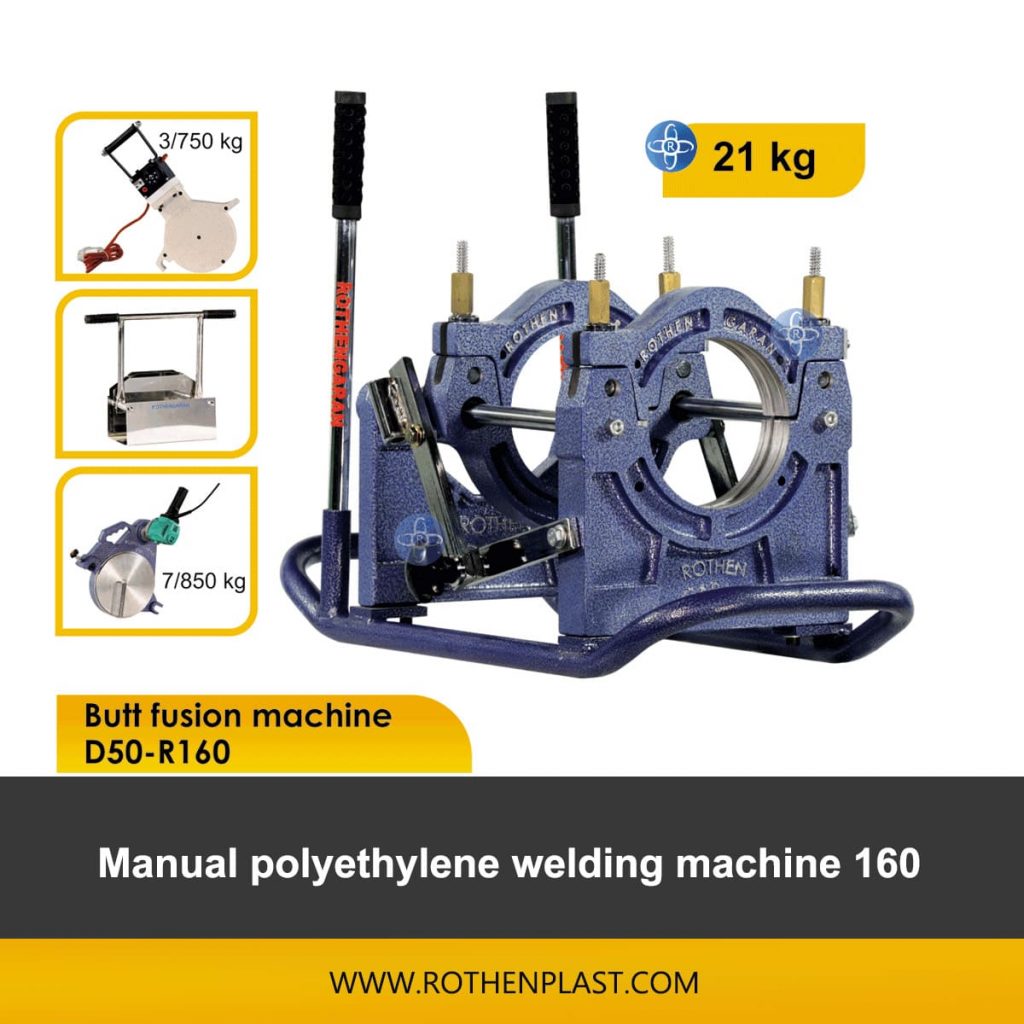

Butt fusion machine
D32-R110

Application and Features
● Suitable for welding of plastic pipes and/or fittings made of PE, PP,
and PVDF, can be operated in any complex work condition.
● Consists of basic frame, planning tool, heating plate.
● Removable PTFE coated heating plate.
● Electric planning tool.
● Be made of lightweight and high strength material; simple structure,
small and delicate user friendly.

Technical Parameters

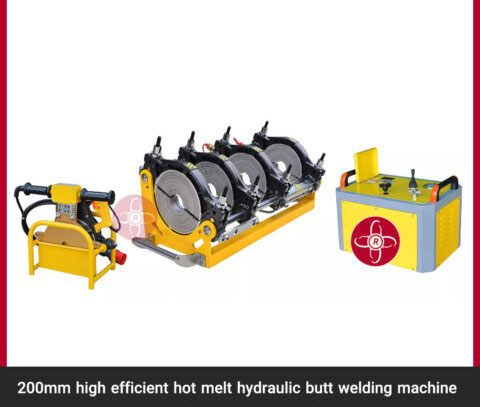

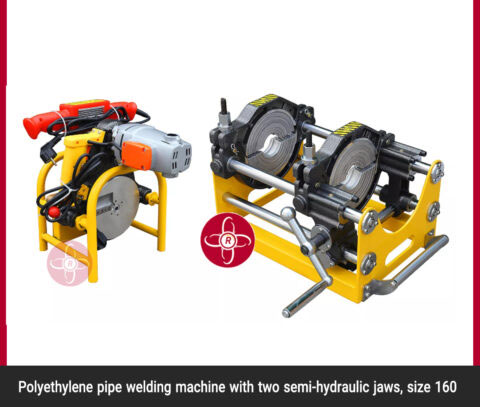

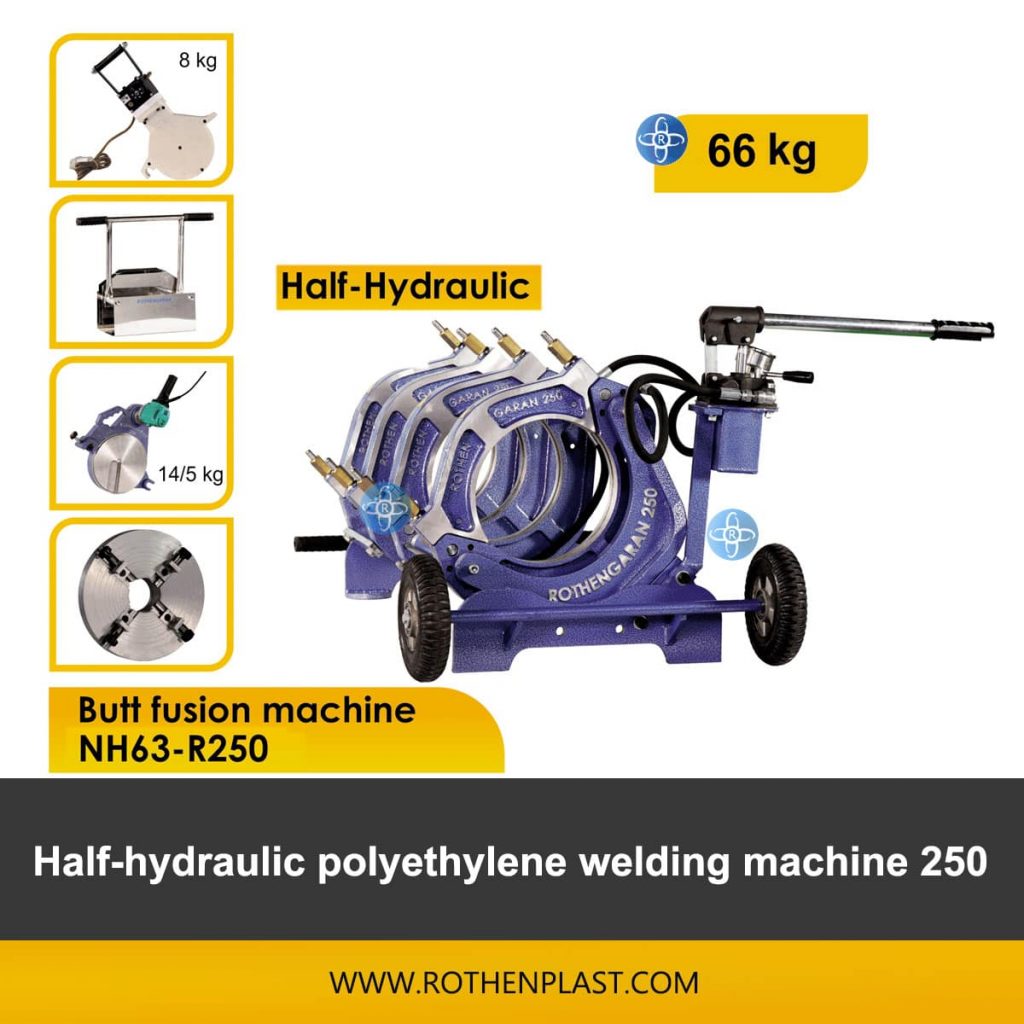

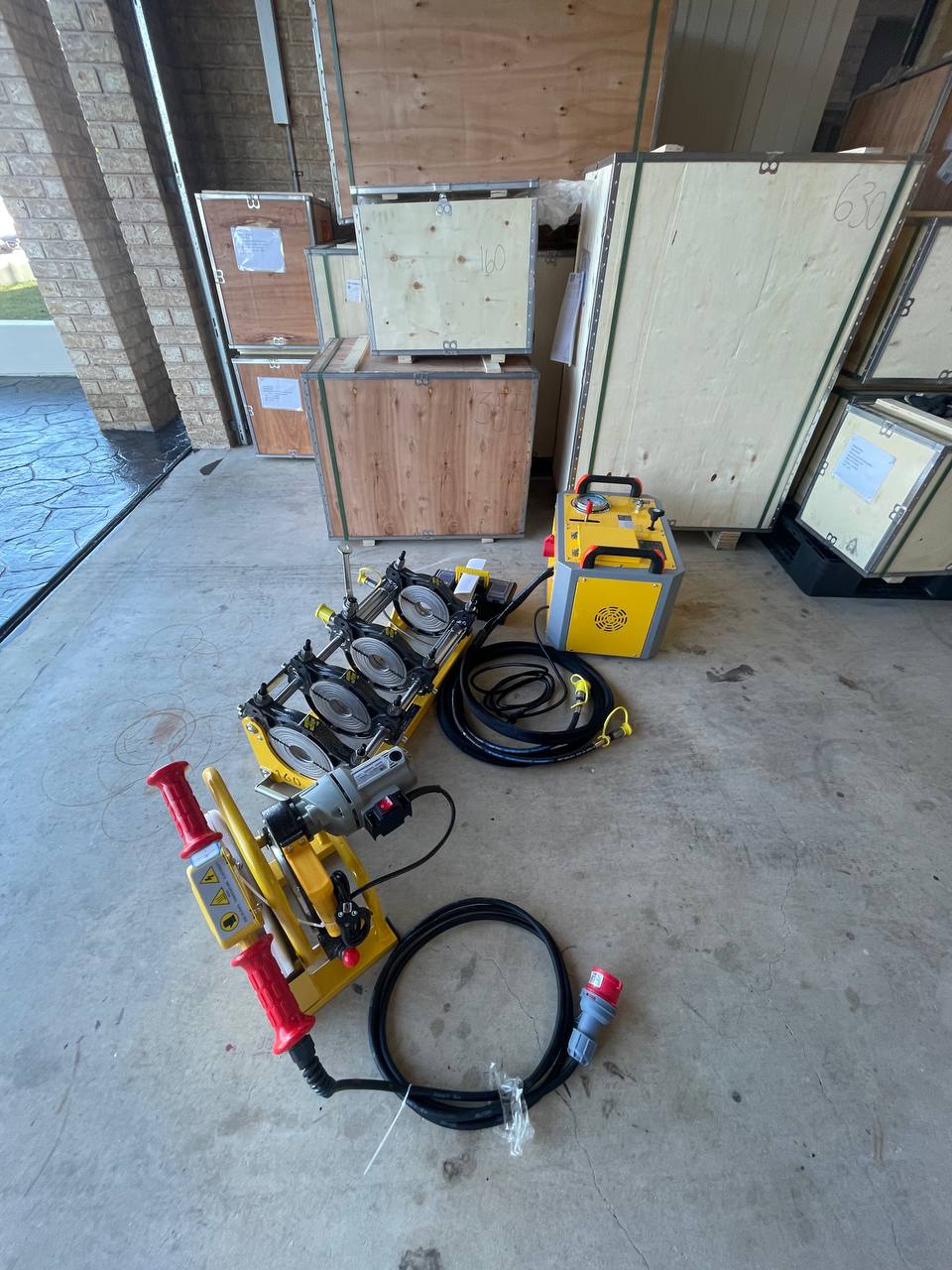

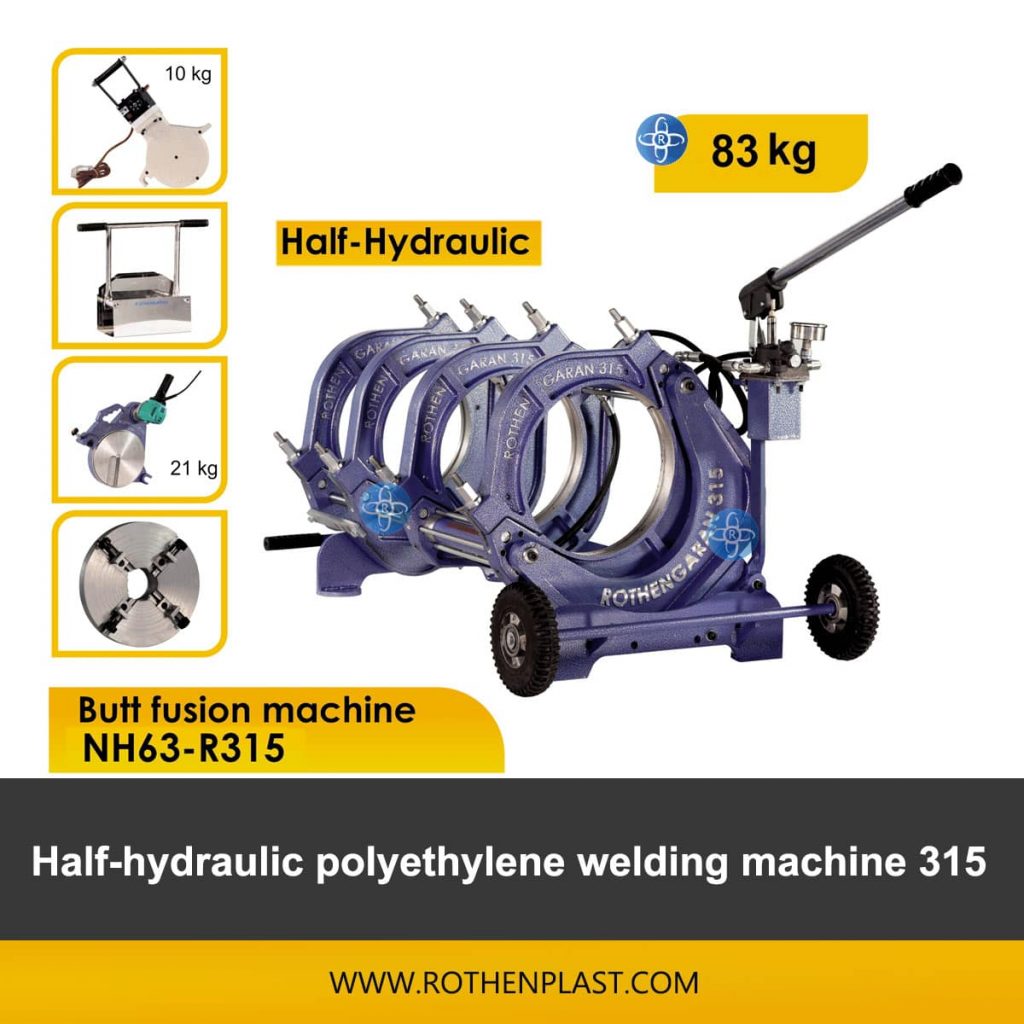

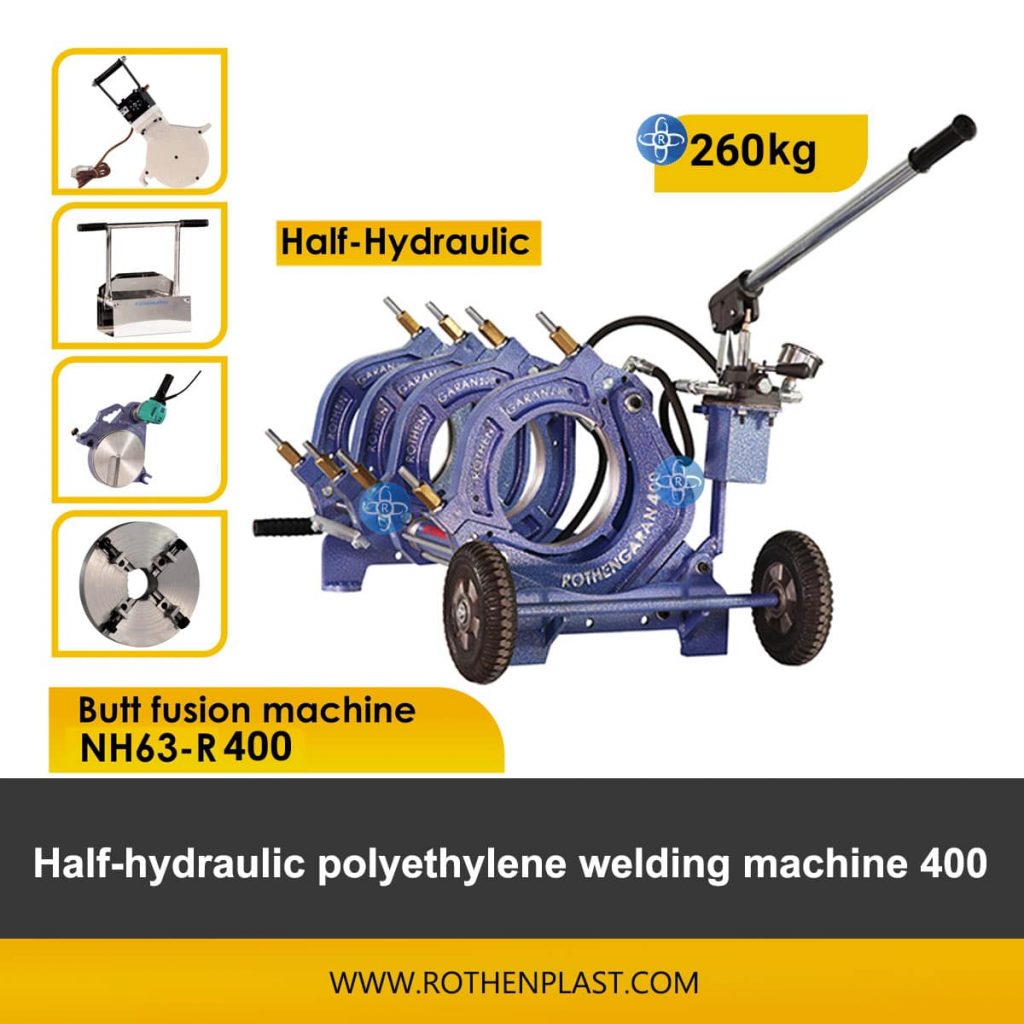

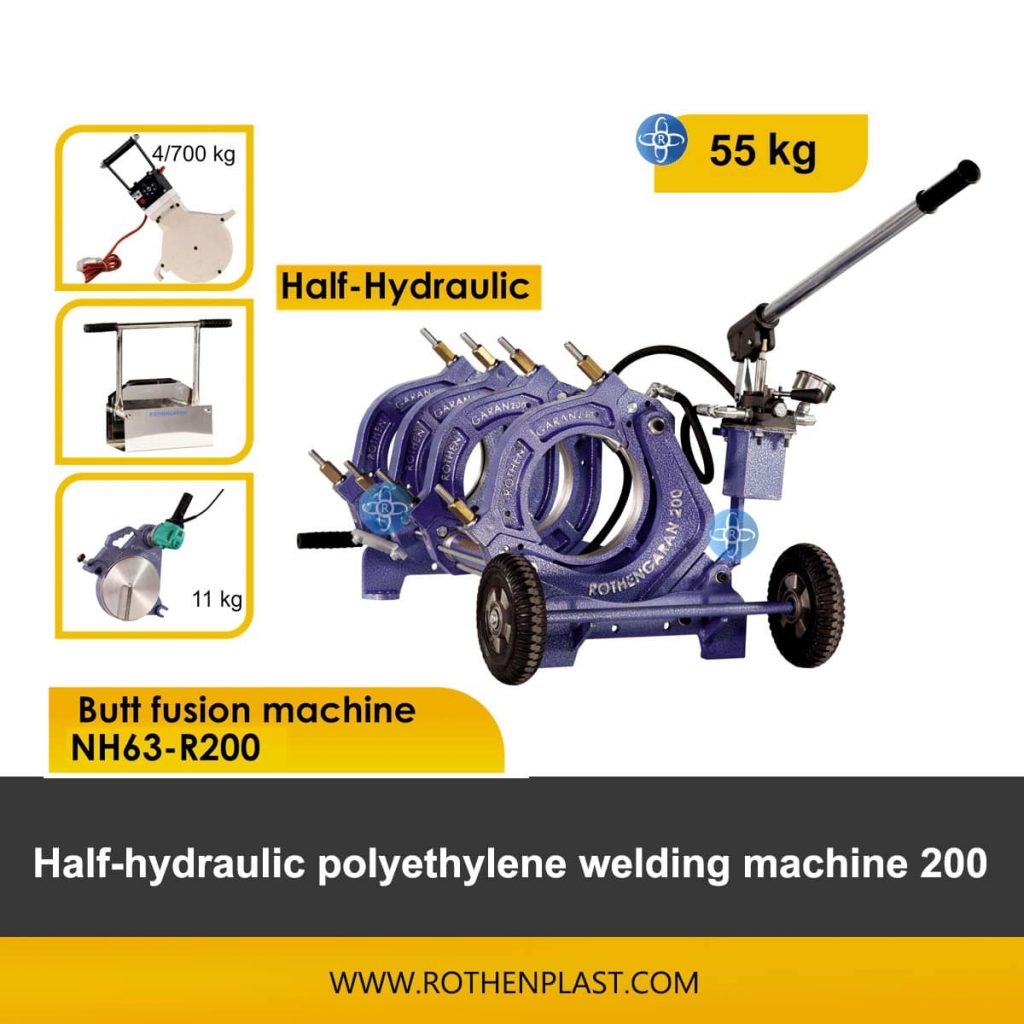

Butt fusion machine
Half-Hydraulic

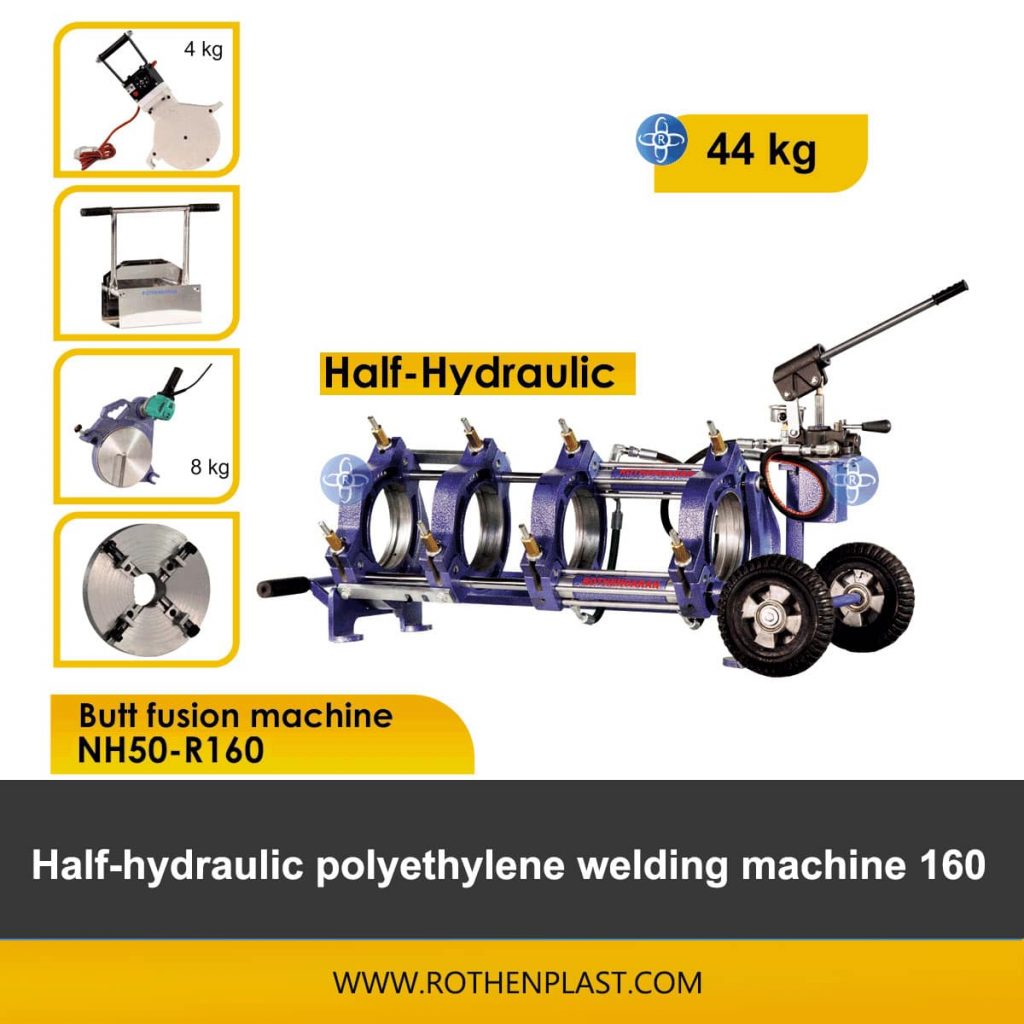

NH50-R160

Application and Features
● Using cases: this machine is used in sewerage systems, especially in butt
weld Polyethylene PE 63,PE 80,PE100
●Qualifications:welding abilities of polyethylene pipes in
50-63-75-90-110-125-(140) Sizes in 2-2/5-3/2-4-6-10-16 atmospheric pressure
● Machine dimensions : 32*40*35
● Wight : 83 kg
● Accessories:1-Hand Power hydraulic 2-Electric heater 750 w 3-Shaver
4-Regulative Clamps 5-Roller, guiding wheel calibration certificate

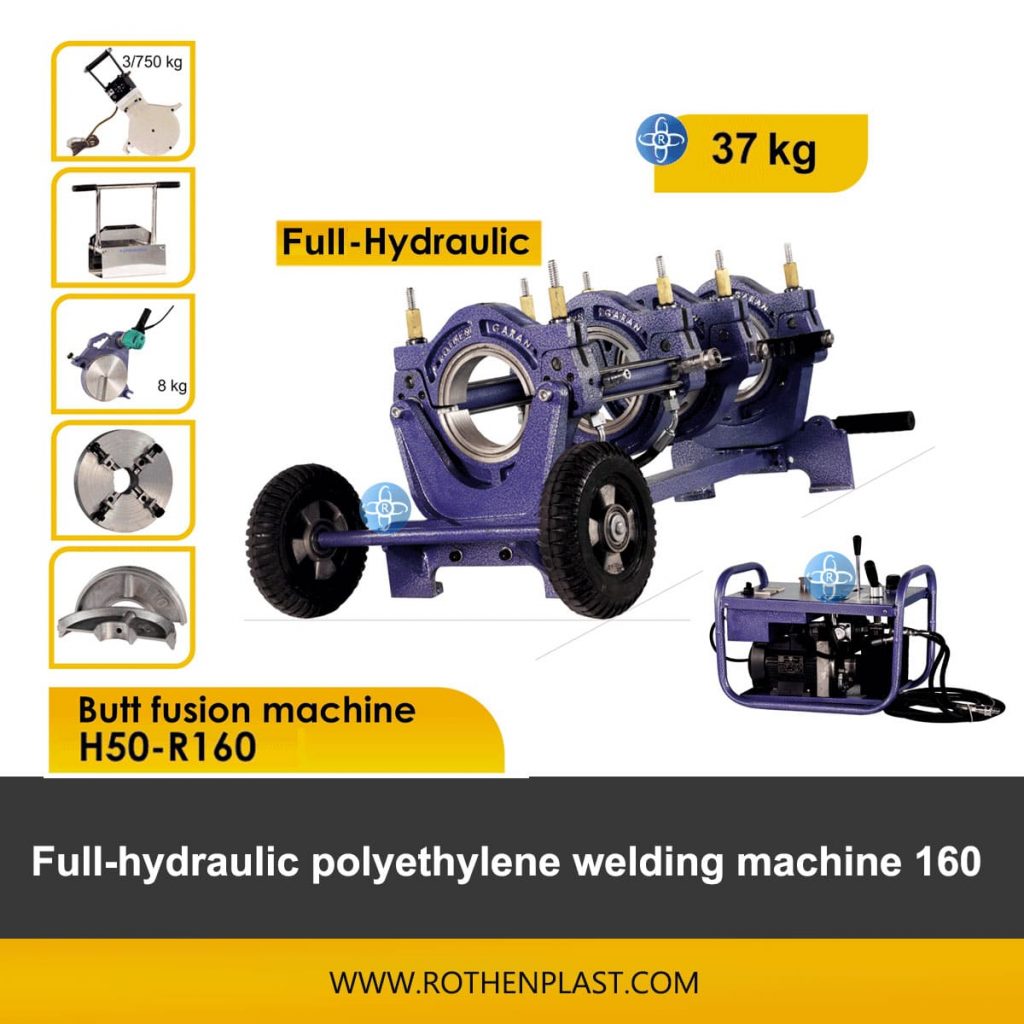

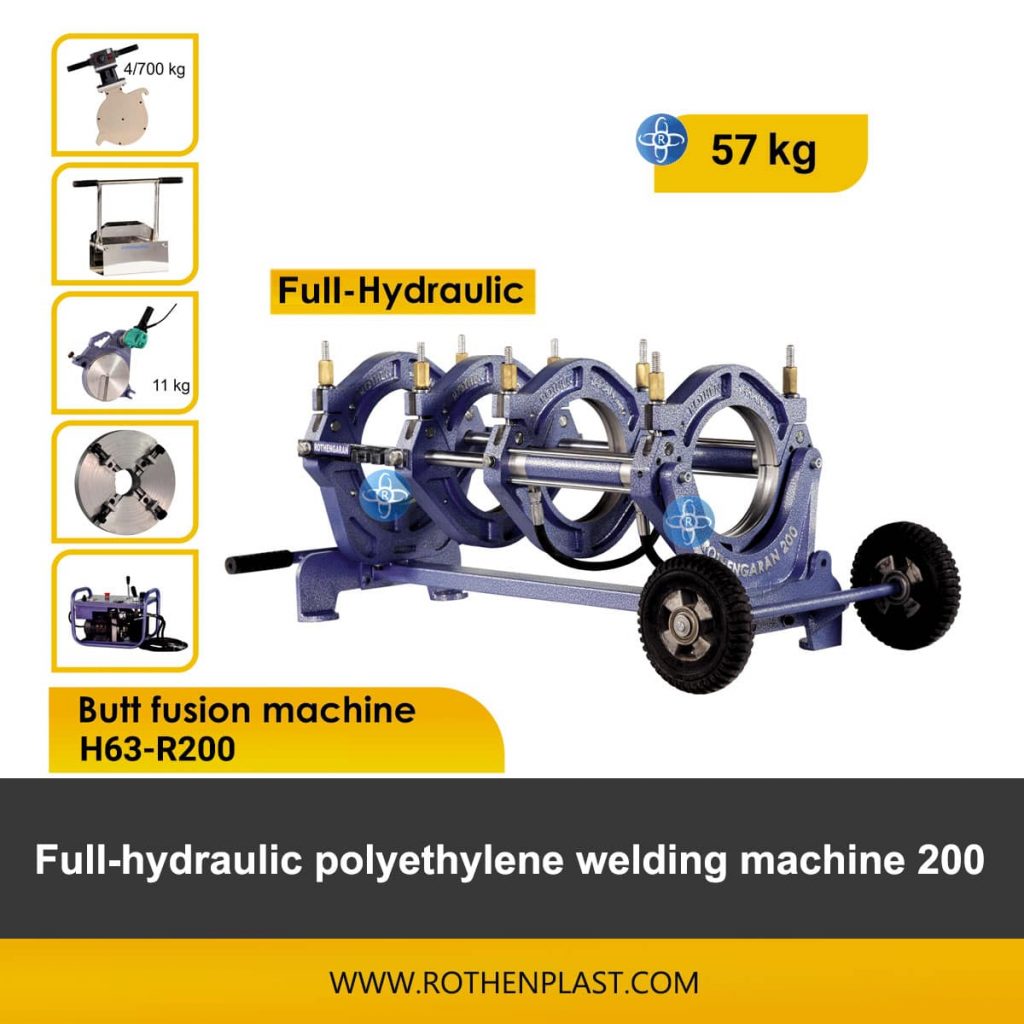

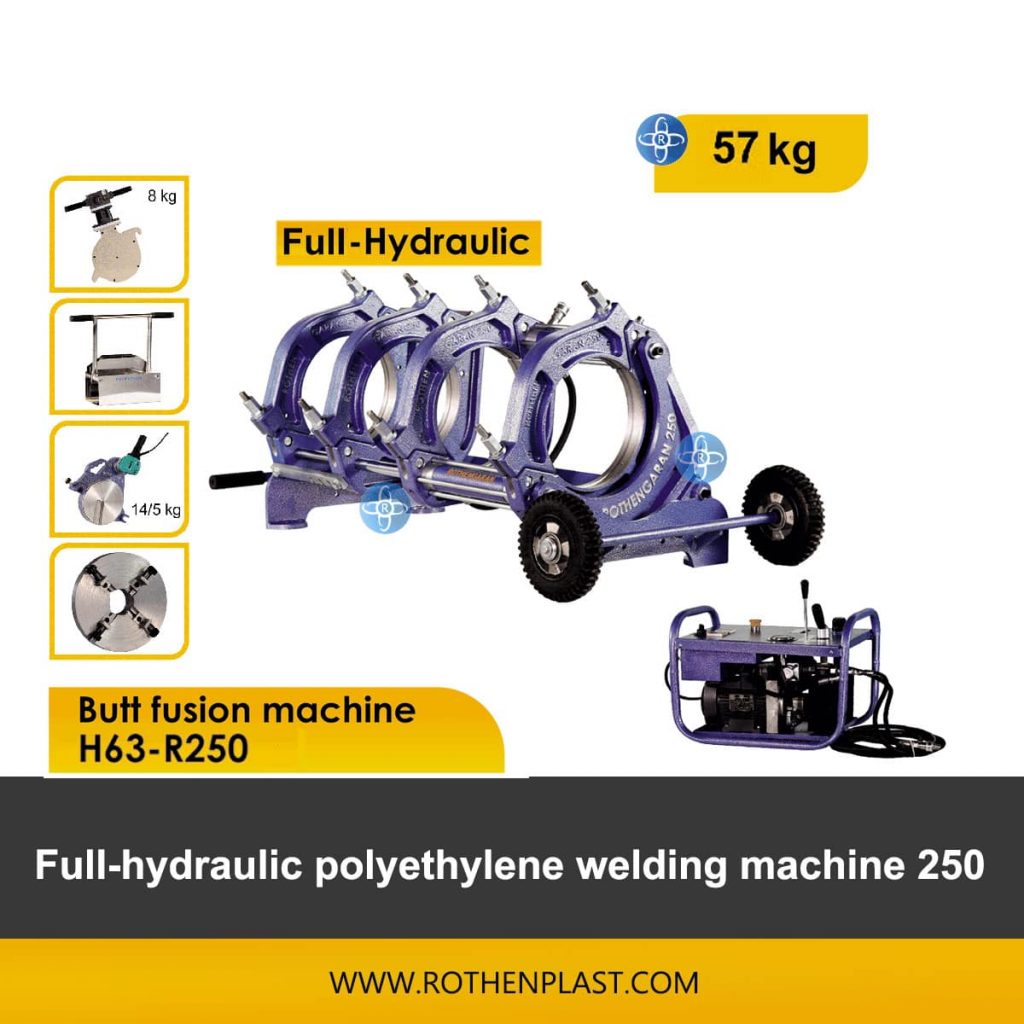

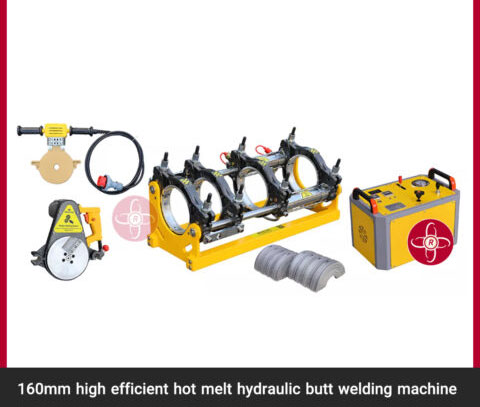

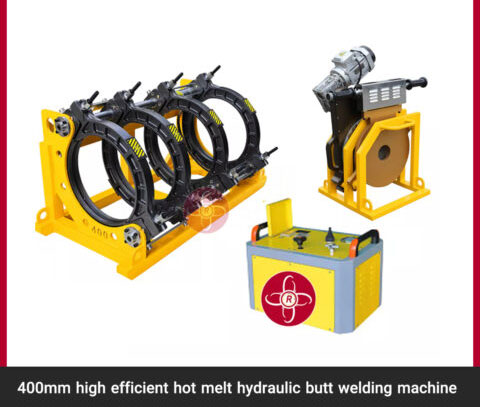

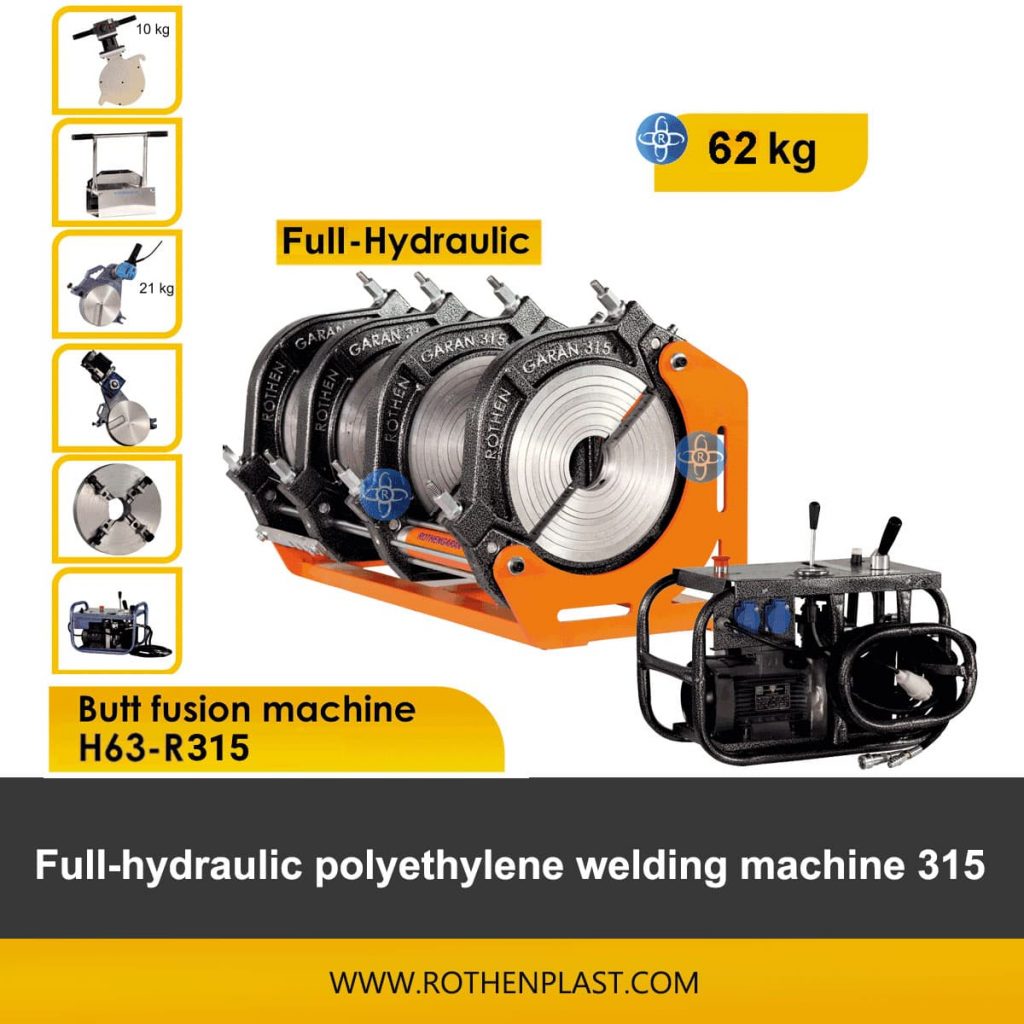

Butt fusion machine
H50-R160

Application and Features
● Suitable for butt welding of plastic pipes and/or fittings made of PE, PP
and PVDF, in worksite or workshop.
● Consists of basic frame, hydraulic unit, planning tool, heating plate,
Support for planning tool & heating plate, and optional parts.
● Removable PTFE coated heating plate.
● Electrical planning tool.
● Be made of lightweight and high strength material; simple structure,
small and delicate user friendly
●Low starting pressure ensures reliable welding quality of small pipes
●Changeable welding position enables to weld various fittings more easily.
●Separate two-channel timer records time in soaking and cooling phases.
●High-accurate and shockproof pressure meter indicates clearer readings.

Butt fusion machine
Workshop Welding Machine For Wastes Water
DF50-R160

Application and Features
● Suitable for lengthening short injection molded fitting in
a workshop or produce an integrated fittings.
● Also used to install drainage system in building. Specially
designed clamps according to features in structure and
dimension of fitting in drainage system.
● Removable PTFE coated heating plate with separate
temperature controlling system.
● Electric planning tool with safety limit switch enables it to be
started only when it is locked in operation position.
●Spring manometer provides correct welding pressure.
●Pivoting planning tool and heating plate bring convenience to
placing and removing.
●Mechanical lock to maintain welding pressure.

Optional parts:
●Various special clamps for installation.
●Of drainage system in building.

Butt fusion machine
Workshop Fitting Machines
HZ 90-R315 HZ 250-R450 HZ 315-R630

Application and Features
● Suitable for fabricating elbow,tee,cross and Y shape (45 and 60)
fittings of PE,PP,PVDF in workshop.Also used to lengthen the
injection moulded fitting or make the integrated fitting.
●Integrated structure,Nothing remains but to choose the different
special clamps while fabricating different fittings.
● Removable PTFE coated heating plate.
● Electric planning tool with safety limit switch.
● Low starting pressure and high reliable seal structure.
●Separate two-channel timer records times in soaking and
cooling phases. High-accurate and shockproof pressure
meter indicates clearer readings.Digital pressure meter is
installed on machines above HZ315 pivoting planning
tool and heating plate bring convenience to placing
and removing. Hz450 & HZ630 linear guide ways are
equipped with heating plate and planning tool.
Optional parts:
●Special clamps for welding flange stub.
● Special clamps for short spigot fitting.
●Special clamps for welding Y shape (45° and 60°) fittings.

Butt fusion machine

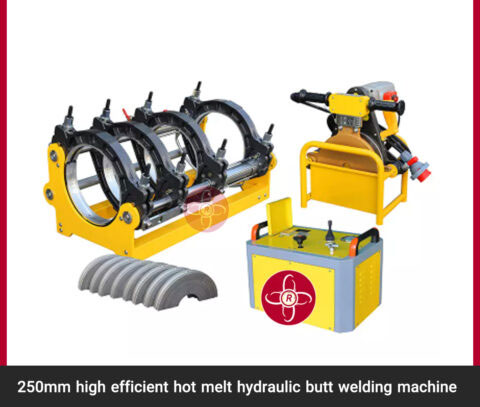

Automatic Welding Machines
H-CNC63-R250

Application and Features
● Control system of microcomputer can detect automatic welding process.
● Automatic butt fusion welding machine can be used in at worksite and workshop.
●Suitable for butt welding of plastics pipes and fittings made of PE,PP,and PVDF.
●Removable PTFE coated heating plated with high accuracy temperature control system
● Main part of basic frame is made out of Aluminum alloys,light and handy structure,
convenient to use.
● Optional models: H-CNC250,H-CNC315
Advantages:
Computer control is according to national standard GB/T20674’1
At the predetermined parameters range,all phases of butt welding process are
controlled automatically.
Error analysis system will recognize the error with predetermined parameters.
Computer can save 350 pieces of welding records,and input the records to computer.
With mini printer, can review welding records welding process at site.

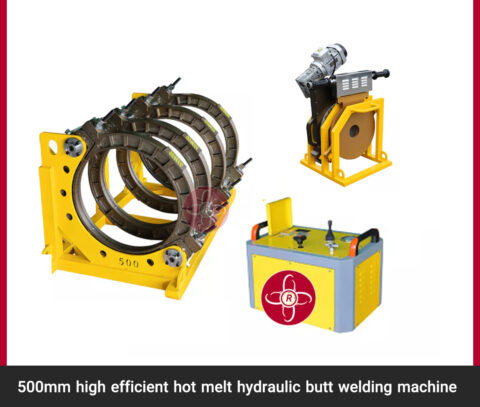

Butt fusion machin
Repair welding machine

Rapairing machines developed as completion of 250,315,355
and 500 machines.
Three clamps built on two hydraulic cylinders compose the
machine ; one clamp is also easily removable.
The best solution to work in cramped spaces.
These machines can be equipped with the same components
(heating mirror, facing tool,hydraulic unit and reducing inserts)
of the corresponding HT models.

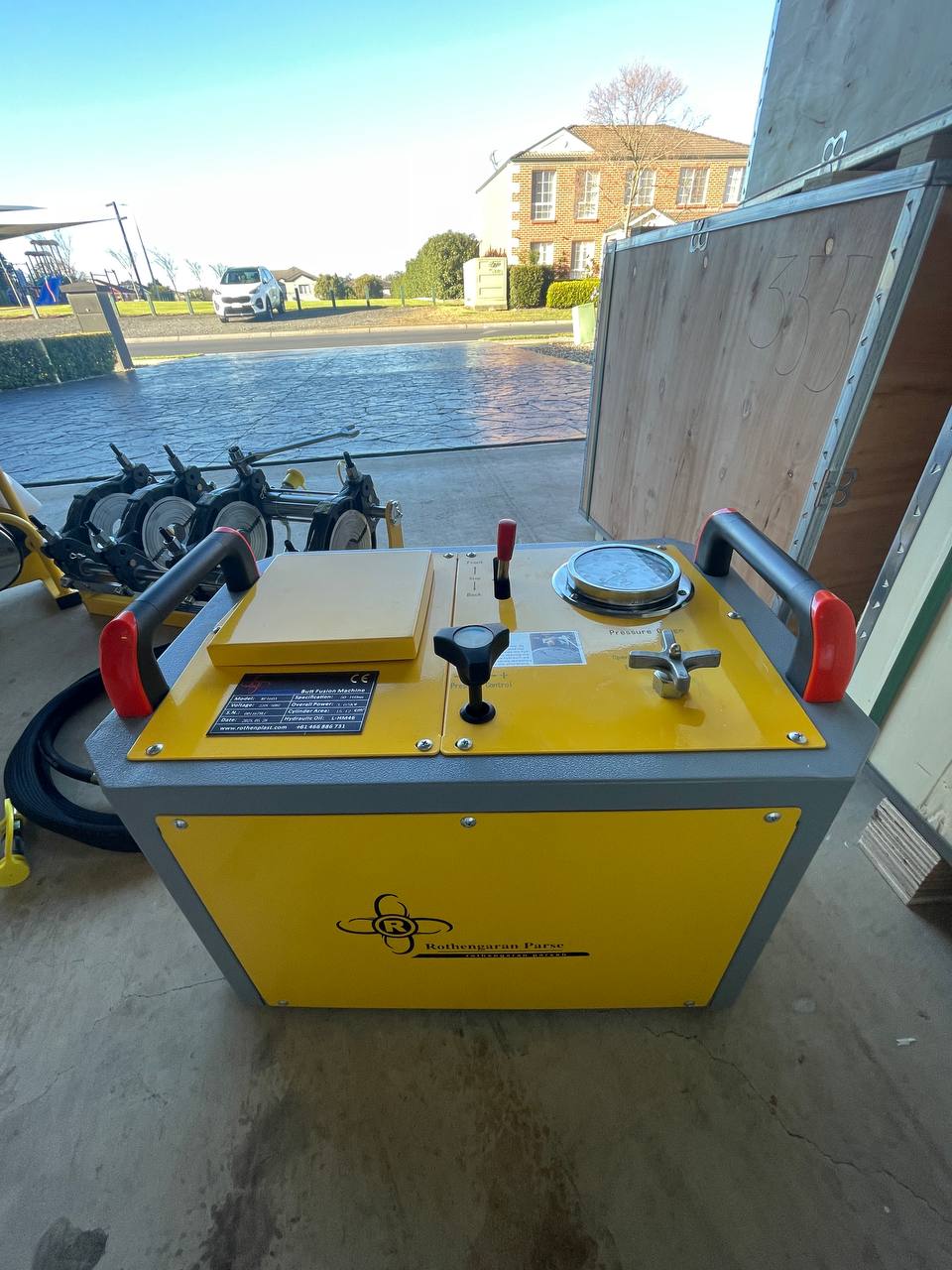

Hydraulic Unit

This machine is part of the PE welding equipment.
The machine is used to move hydraulic jacks and has two
hydraulic hoses (sweep).
● compact construction with protection frame.
● fine adjustment of pressure.
● clearly visible pressure gauge with precision scaling (0-160 bar)
● high pressure constance during cooling phase.
● fix attached hydraulic hoses.

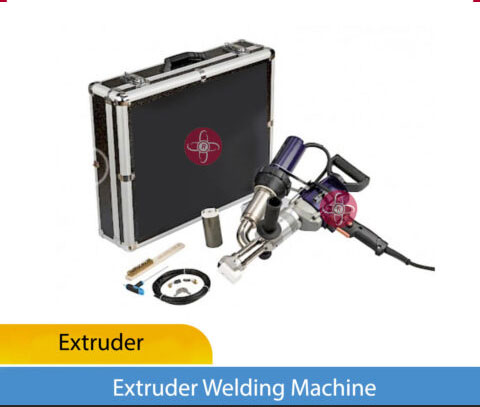

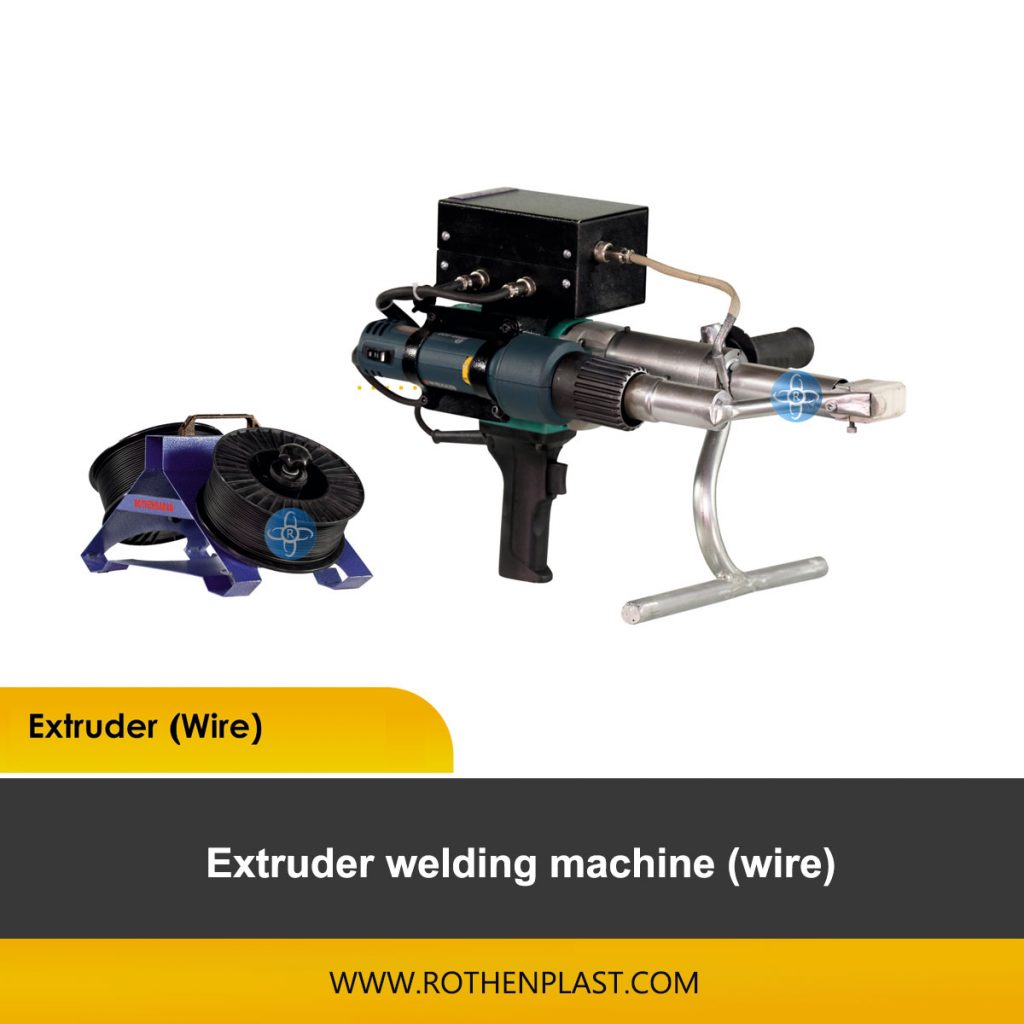

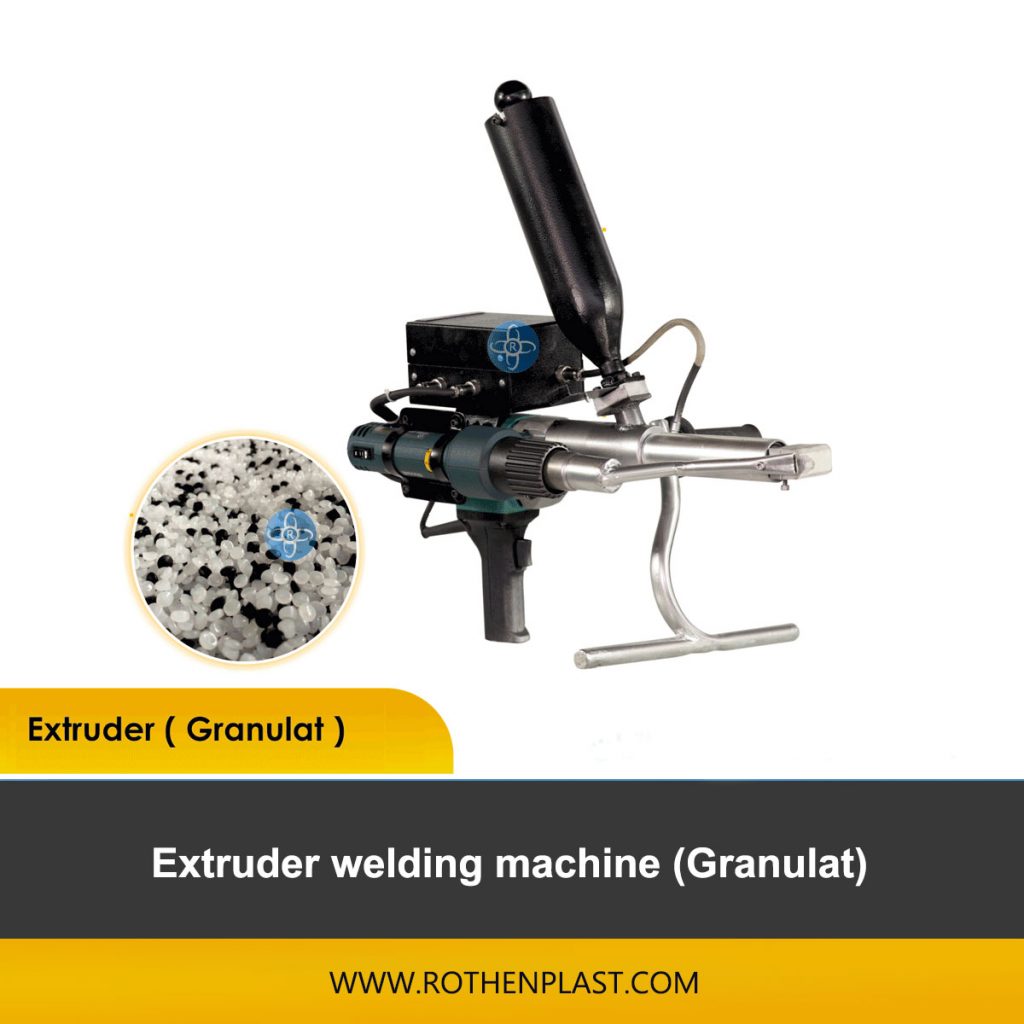

Extruder (Wire)

Manual and wire extruder welding machine is used for welding spiral and polyethylene carbide pipes as well as for repair and fabrication of polyethylene tanks.
Equipped with German bosch warm air blower with 2000 watts to boost working surface.
Equipped with digital temperature display.
Flexible cylinder round element with 1100 watts and thermocouples.
Low-power motor to 1010 watts.
PTF shoe in different designs depending on the type of user.
Equipped with 3, 4 and 5 mm wire inlets.
Dispensing materials 2 to 3 kg per hour.
With retainer base and adjustable handle.
Thermocouple for temperature regulation.
Total weight with air blower 7.5 kg.
